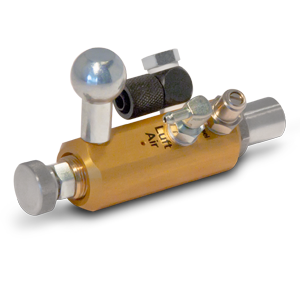

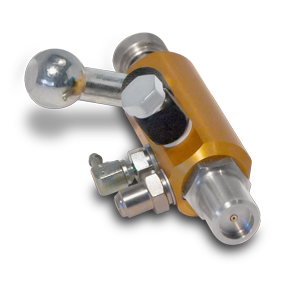

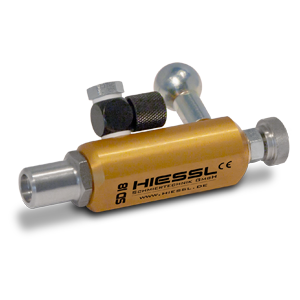

Coaxial spray nozzle SD18
Features
- for use in individual spray stations
- narrow spray beam
- only two connections – spray air adjustable at the nozzle
- also available with three connectors
- drip-free with patented seal
- finely adjustable fluid quantity
- stainless steel construction available on request
Technical data

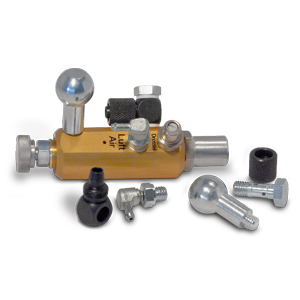

Connectors
| 2 connectors (Standard) | |
| Control air
Spray air |
M5x0,8 |
| Fluid | M5x0,8 |
| 3 connectors (DMS) |
|
| Control air | M5x0.8 |
| Spray air | M5x0.8 |
| Fluid | M5x0.8 |
Sealing materials
| Viton (FPM) |
Spray angle and pattern

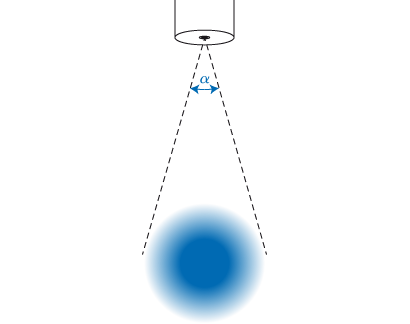

| α=15° |
|
Fluid volume at 1 bar
| Viscosity of 1 at 20°C [mm2/s] | 0 – 6400 ml/h |
| Viscosity of 100 at 40°C [mm2/s] | 0 – 580 ml/h |
| Viscosity of 400 at 40°C [mm2/s] | 0 – 115 ml/h |
Basic nozzle settings
Basic settings
| Viscosity at 40°C [mm2/s] | < 60 | 60 – 200 | 200 – 600 |
| Control air [bar] | 4.0 - 5.0 | 4.0 - 5.0 | 4.0 - 5.0 |
| Spray air [bar] (DMS) |
0.5 | 0.7 | 1.0 |
| Oil pressure [bar] | < 0.5 | 0.5 – 1.0 | > 1.0 |
