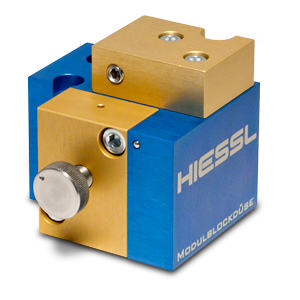

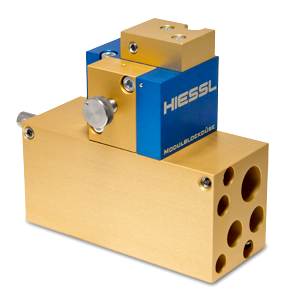

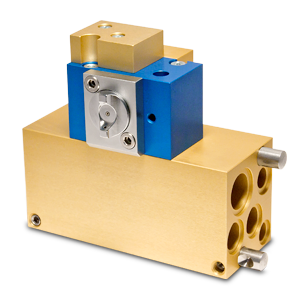

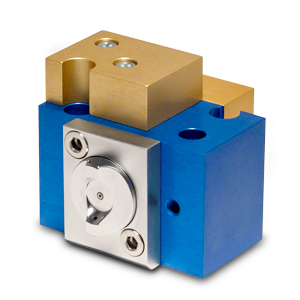

Spray bar nozzle BS
Features
- specially developed for the construction of nozzle arrays
- large variety of media blocks
- large variety of control options
- large variety of spray nozzle extensions
- suited to fluids with high viscosity
- fluid volume adjustable with precision mesh regulator and 40 mesh settings per rotation
Technical data
Connectors
| Control air | media block or spray nozzle |
| Spray air | media block |
| Wide spray air | media block |
| Fluid | media block |
Sealing materials
| Viton (FPM) |
Spray angle and pattern
| α=15° to β=90°, 360° rotation |
|
Fluid volume at 1 bar
| Viscosity of 1 at 20°C [mm2/s] | 0 – 8400 ml/h |
| Viscosity of 100 at 40°C [mm2/s] | 0 – 2820 ml/h |
| Viscosity of 400 at 40°C [mm2/s] | 0 – 660 ml/h |
Basic nozzle settings
Basic settings
| Viscosity at 40°C [mm2/s] | < 60 | 60 – 200 | 200 – 600 |
| Control air [bar] | 3.0 – 5.0 | 3.0 – 5.0 | 3.0 – 5.0 |
| Oil pressure [bar] | < 0.5 | 0.5 – 1.0 | > 1.0 |
| Spray air [bar] | 0.5 | 0.7 | 1.0 |
| Wide spray air [bar] | 0.8 | 1.0 | 1.5 – 2.0 |
| Viscosity at 40°C [mm2/s] | < 60 | 60 – 200 | 200 – 600 |
