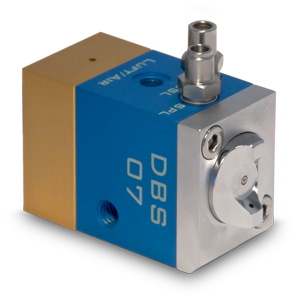

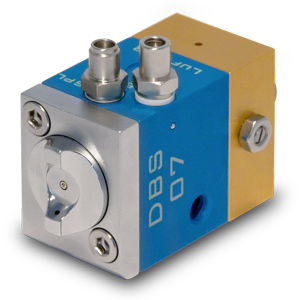

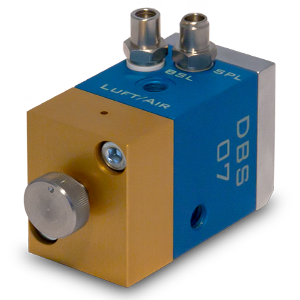

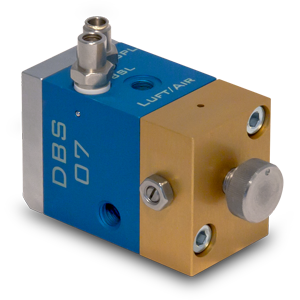

Wide spray nozzle DBS07
Features
- for use in individual spray stations
- only two connections
- spray air/flat spray air adjustable directly on the spray head
- large variety of spray nozzle extensions
- fluid volume adjustable with precision mesh strainer with 40 strainer settings per rotation
Technical data
Connectors
| Control air Spray air Wide spray air |
M5x0.8 |
| Fluid | M5x0.8 |
Sealing materials
| Viton (FPM) |
Spray angle and pattern
| α=15° to β=90°, 360° rotation |
|
Fluid volume at 1 bar
| Viscosity of 1 at 20°C [mm2/s] | 0 – 8400 ml/h |
| Viscosity of 100 at 40°C [mm2/s] | 0 – 2820 ml/h |
| Viscosity of 400 at 40°C [mm2/s] | 0 – 660 ml/h |
Basic nozzle settings
Basic settings
| Viscosity at 40°C [mm2/s] | < 60 | 60 – 200 | 200 – 600 |
| Air [bar] | 5.0 | 5.0 | 5.0 |
| Oil pressure [bar] | < 0.5 | 0.5 – 1.0 | > 1.0 |
